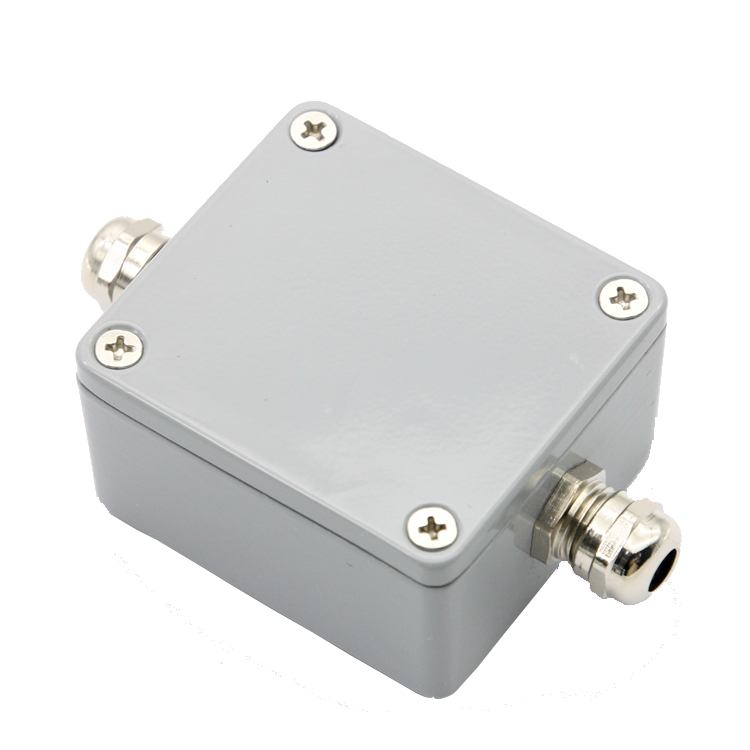

Amplifier T098
Prevent sensor damage from lightning induction and surge signal
Multiple signal integration with IP65 protection
Use one input and one output junction box
Product Description
Features&Applications
Using special waterproof connector
Use the multi-turn potentiometer with high stability to do compensation and adjustment
Cover with waterproof rubber gasket which could be waterproof and dustproof suitable for harsh industrial conditions
Prevent sensor damage from lightning induction and surge signal
Multiple signal integration with IP65 protection
Use one input and one output junction box
| Specifications | Technique |
| Output specification | ±10V/0~10V/4~20mA |
| Output linear | >0.1% |
| Comprehensive accuracy | >0.1% |
| Accept sensor | 0.3mV/V~8mV/V |
| Input load | 1~2 sensors load cells |
| Output ripple | ≤2mVp-p |
| Output load | ≤500Ω(Output load resistance) |
| Nominal range of excitaion vottage | 5VDC |
| Power supply | 9~26VDC |
| Power waste | ≤0.2W |
| Weight approx. | 0.45kg |
| Operating temperature range | -20~60℃ |
| Weight approx. | 0.17kg |
| Material | Aluminum Alloy |
| IP Class | IP66 |
FAQ
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
