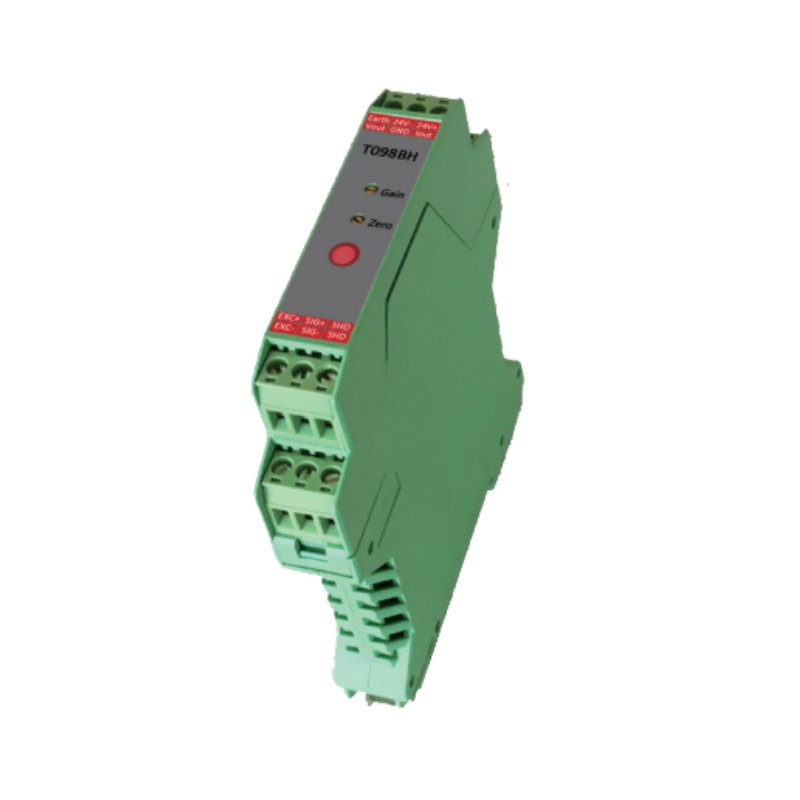

Amplifier T098BH
Multi-output±10V,4~20mA,0~20mA
The power is isolated from signal,strong anti-interference ability.
High accuracy,high precision amplifing and resistance
Product Description
Features&Applications
Multi-output±10V,4~20mA,0~20mA
The power is isolated from signal,strong anti-interference ability.
High accuracy,high precision amplifing and resistance
Stable and accurate output with multi-grades activefilter.
Could be connected with multi-capacity load cells with wide scope of zero point adjustment
| Specifications | Technique |
| Output specification | ±10V/0~10V/4~20mA |
| Output linear | >0.1% |
| Comprehensive accuracy | >0.1% |
| Accept sensor | 0.3mV/V~8mV/V |
| Input load | 1~2 sensors load cells |
| Output ripple | ≤2mVp-p |
| Output load | ≤500Ω(Output load resistance) |
| Nominal range of excitaion vottage | 5VDC |
| Power supply | 9~26VDC |
| Power waste | ≤0.2W |
| Operating temperature range | -20~60℃ |
| Weight approx. | 0.17kg |
| Material | Aluminum Alloy |
| IP Class | IP66 |
FAQ
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
