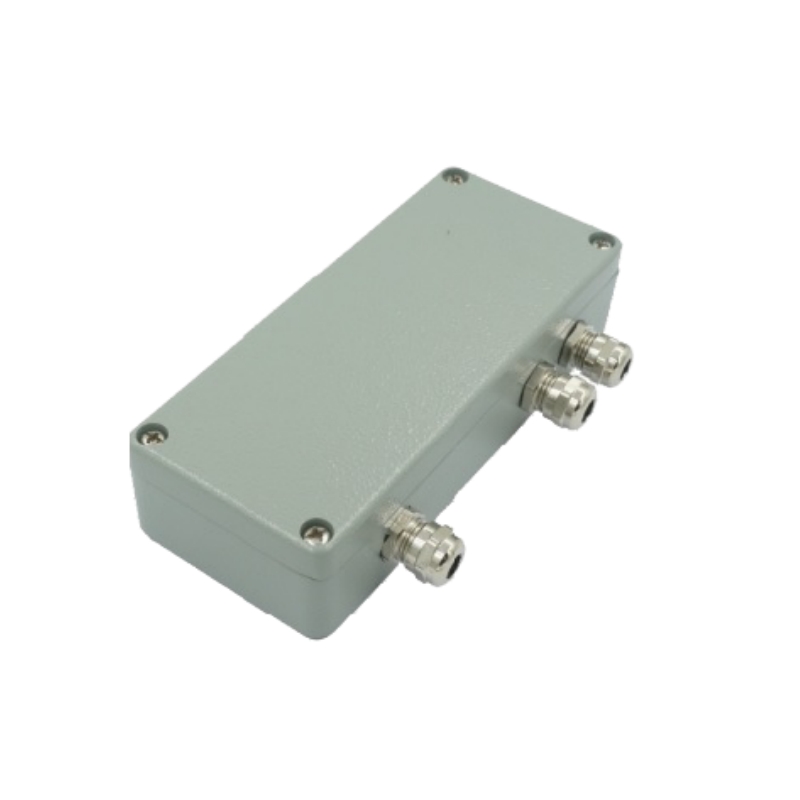

Amplifier T098H
Multi-output±10V,4~20mA,0~20mA
The power is isolated from signal,strong anti-interference ability.
High accuracy,high precision amplifying and resistance
Product Description
Features&Applications
Multi-output±10V,4~20mA,0~20mA
The power is isolated from signal,strong anti-interference ability.
High accuracy,high precision amplifying and resistance
Stable and accurate output with multi-grades active filter.
Could be connected with multi-capacity load cells with wide scope ofzero point adjustment
| Specifications | Technique |
| Output specification | ±10V/0~10V/4~20mA |
| Output linear | >0.1% |
| Comprehensive accuracy | >0.1% |
| Accept sensor | 0.3mV/V~8mV/V |
| Input load | 1~2 sensors load cells |
| Output ripple | ≤2mVp-p |
| Output load | ≤500Ω(Output load resistance) |
| Nominal range of excitaion vottage | 5VDC |
| Power supply | 9~26VDC |
| Power waste | ≤0.2W |
| Operating temperature range | -20~60℃ |
| Weight approx. | 0.17kg |
| Material | Aluminum Alloy |
| IP Class | IP66 |
FAQ
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
