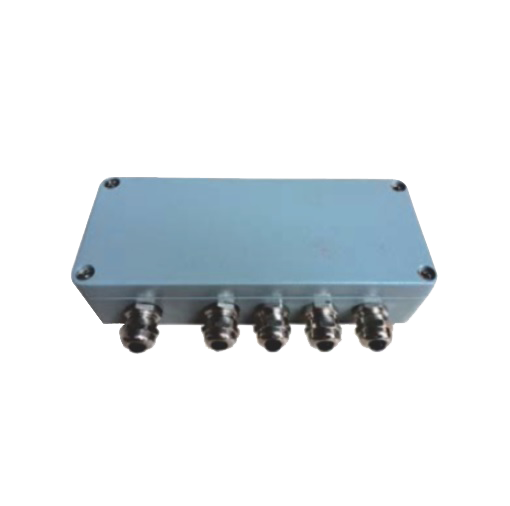

Amplifier T097
Using special waterproof connector
Use the multi-turn potentiometer with high stability to do compensation and adjustment
Cover with waterproof rubber gasket which could be waterproof and dustproof suitable for harsh industrial conditions
Product Description
Features&Applications
Using special waterproof connector
Use the multi-turn potentiometer with high stability to do compensation and adjustment
Cover with waterproof rubber gasket which could be waterproof and dustproof suitable for harsh industrial conditions
Prevent sensor damage from lightning induction and surge signal
Use one input and one output junction box
| Specifications | Technique |
| Output specification | 4~20mA |
| Output linear | >0.05% |
| Comprehensive accuracy | >0.2% |
| Output ripple | ≤5mVp-p |
| AD sampling | 40SPS |
| Input load | 1~4 sensors |
| Nominal range of excitation voltage | 6VDC |
| Output load | ≤500Ω(Output load resistance) |
| Power supply | 15~26VDC |
| Power waste | ≤0.2W |
| Operating temperature range | -20~60℃ |
| Weight approx. | 0.45kg |
| Material | Aluminum Alloy |
| IP Class | IP66 |
FAQ
Will you will attend the fair to show your products?
Yes, we participate in several exhibitions at home and abroad every year
Can you send your sensor to my warehouse in guangzhou?
of course，We have good transportation here
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
