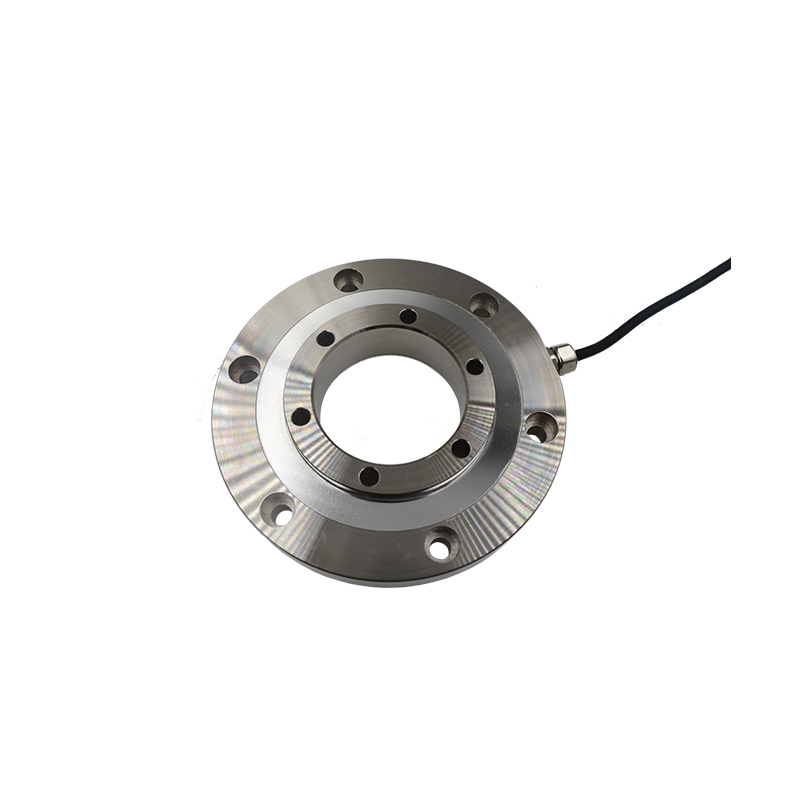

Flange Compression Force Sensor R118B

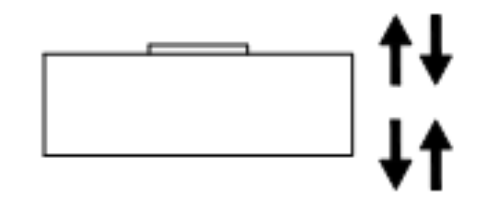

The R118B is a flanged sensor used to measure tensile and compressive forces. This sensor is widely used in test and experimental equipment, weighing bridges, funnel and tank weighing and other industrial system scales. We provide this sensor with a range from 0.1 to 10t.
Product Description
Flange Compression Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 0.1,0.2,0.5,1,2,3,5,10t |
| Nominal(rated)sensitivity | 1.5±20%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on sensitvty | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Nput impedance | 780±10Ω |
| Output impedance | 700±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10-70℃ |
| Safe load limit | 120%F.S |
| Ultimate overload | 150%F.S. |
| lP class | IP66 |
| Cable size | φ4×4000mm |
