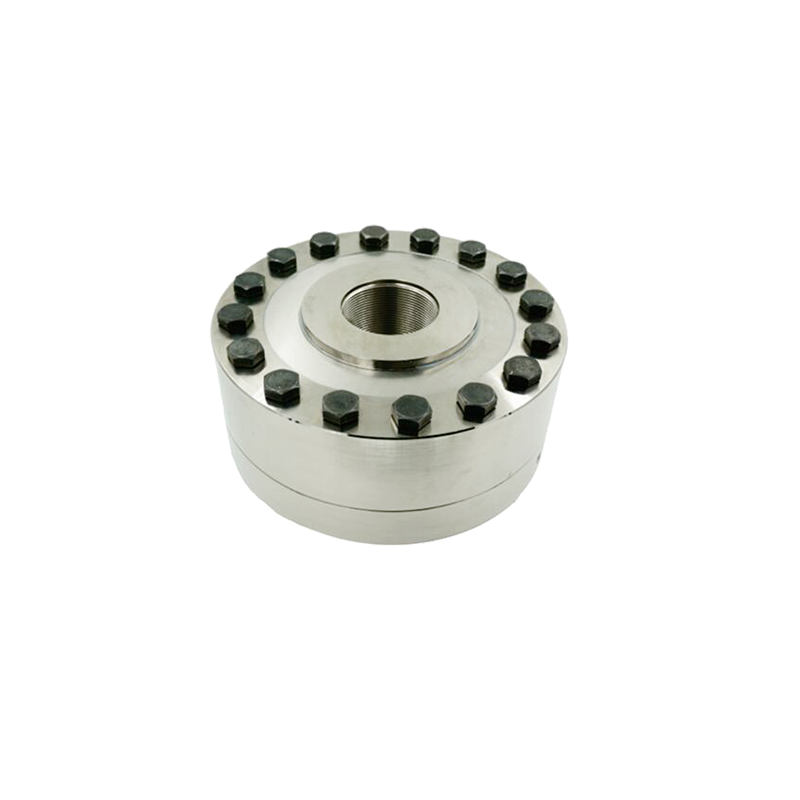

Flange Compression Force Sensor T312L

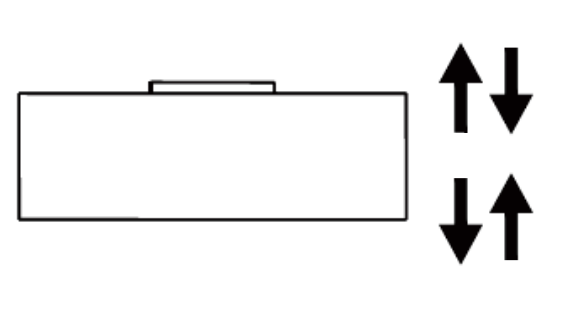

The T312L has a very strong construction and is specifically designed for tension and compression applications. This flexibility is made of alloy steel and currently offers a range of 800 tons.
Product Description
Flange Compression Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 100,200250,300,400,500 600,800t |
| Customizable Capacity | 1000,1500,2000,2500,3000t |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | φ5×6000mm |
