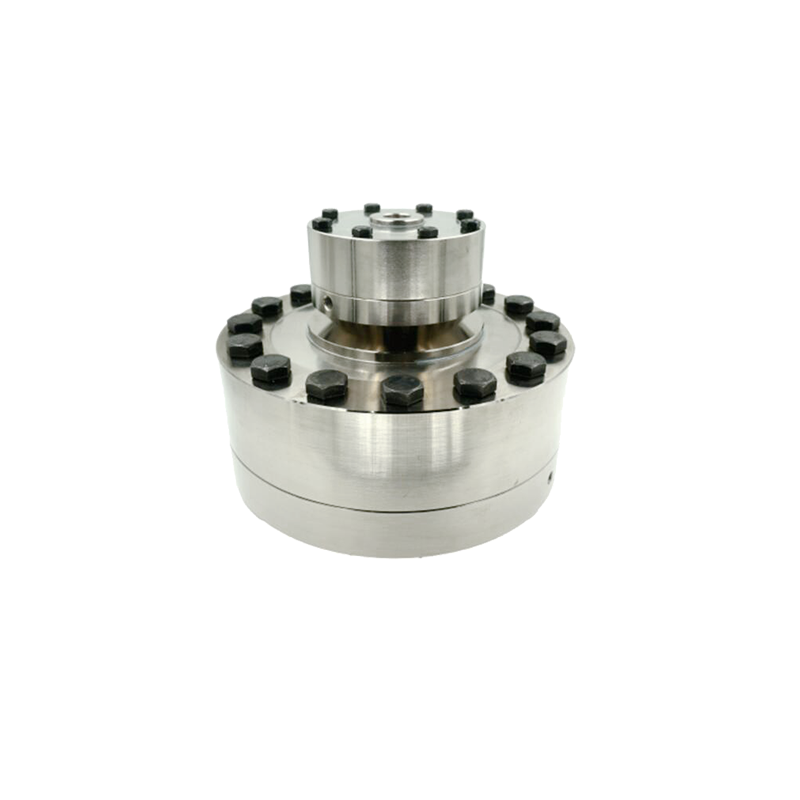

Flange Compression Force Sensor R161

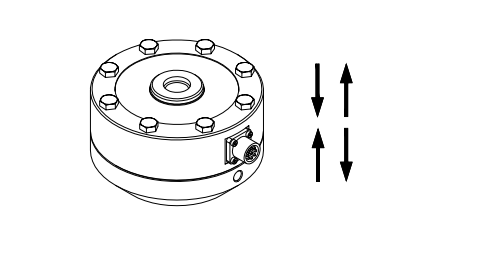

The R161 spoke sensor is used to measure tensile and compressive forces. This sensor is widely used in various industrial weighing systems such as experimental equipment, weighing bridges, and funnels. It can also be used as a standard for measurement. The range of this product is 0.5-50t.
Product Description
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 0.5,1,2,3,5,10,20,30,50t |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on sensitvty | 0.002%F.S./10℃ |
| Temp.effect on zero | 0.002%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP67 |
| Cable size | φ5×6000mm |
