Flange Compression Force Sensor R167

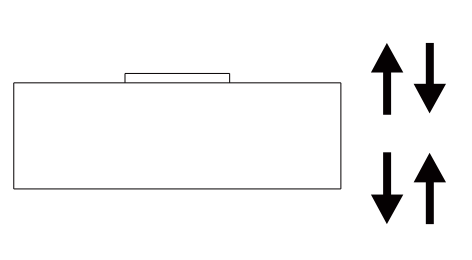

The R167 has a low height and is ideal for tensile and compression force testing machine applications. Widely used in testing and experimental equipment, platform scales, and material tank weighing. We offer a range from 50kg to 500kg for this sensor. The sensor is made of stainless steel, has low height, is rugged and easy to install.
Product Description

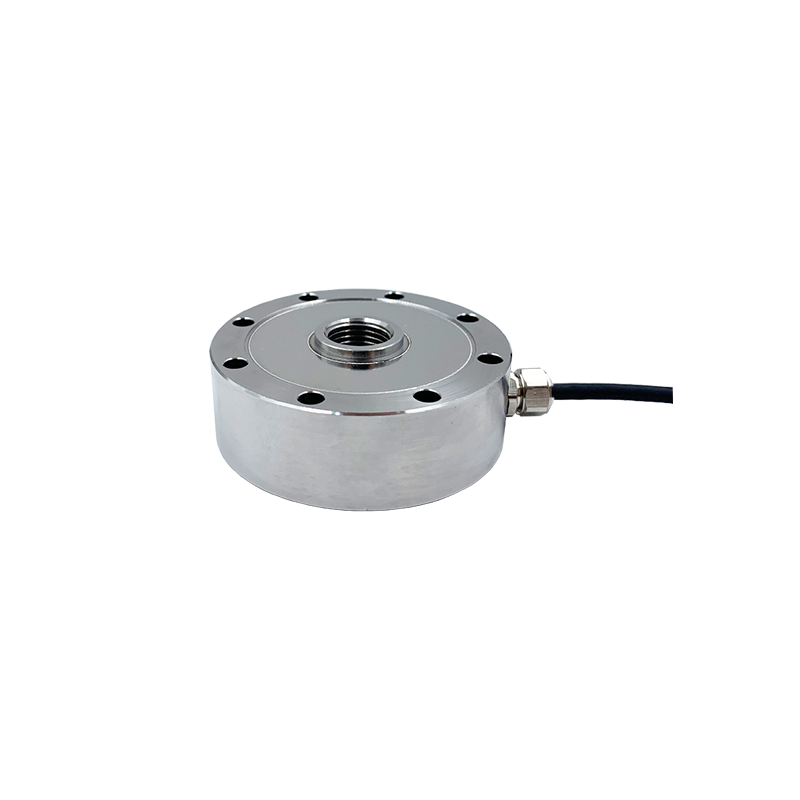

Flange Compression Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 50,100,200,300,500kg |
| Nominal(rated)sensitivity | 2.0±0.1%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on sensitvty | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP68 |
| Cable size | φ5x4000mm |
