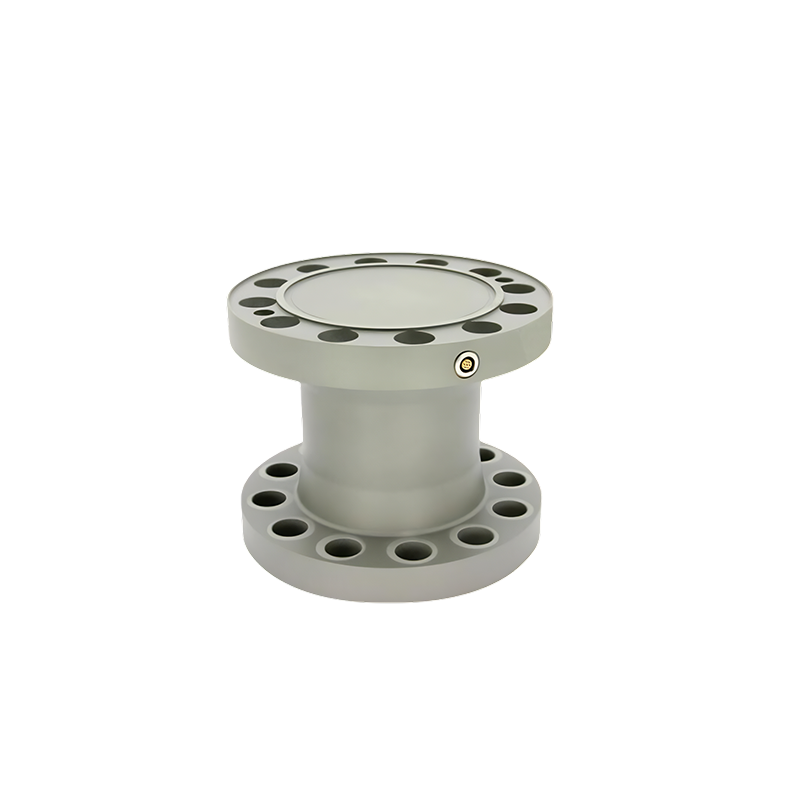

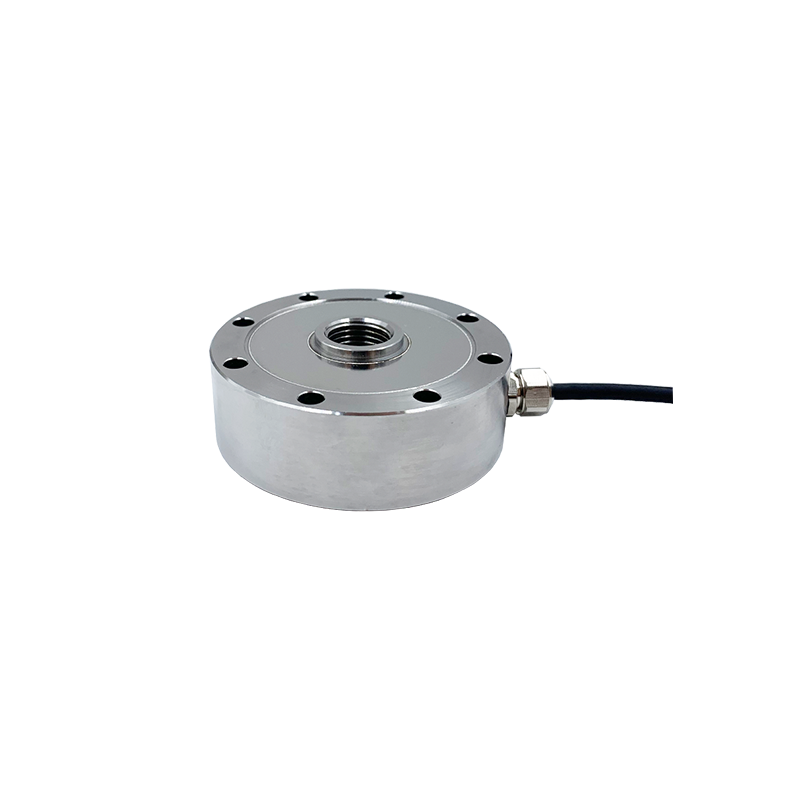

Flange Compression Force Sensor T327

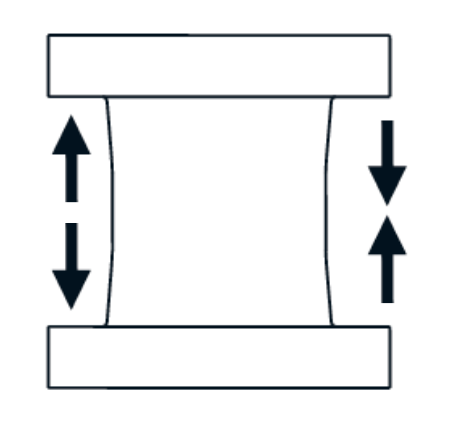

T327 is used to measure tensile and compressive forces. Alloy steel/stainless steel material. This sensor provides rapid measurements in a variety of applications requiring tensile and compressive force measurements.
Product Description
Flange Compression Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom |
100,200,300,500,600kN 1,2,3,4,5,7.5,10MN |
| Nominal(rated)sensitivity | 1.5±1%mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | φ5×6000mm |
