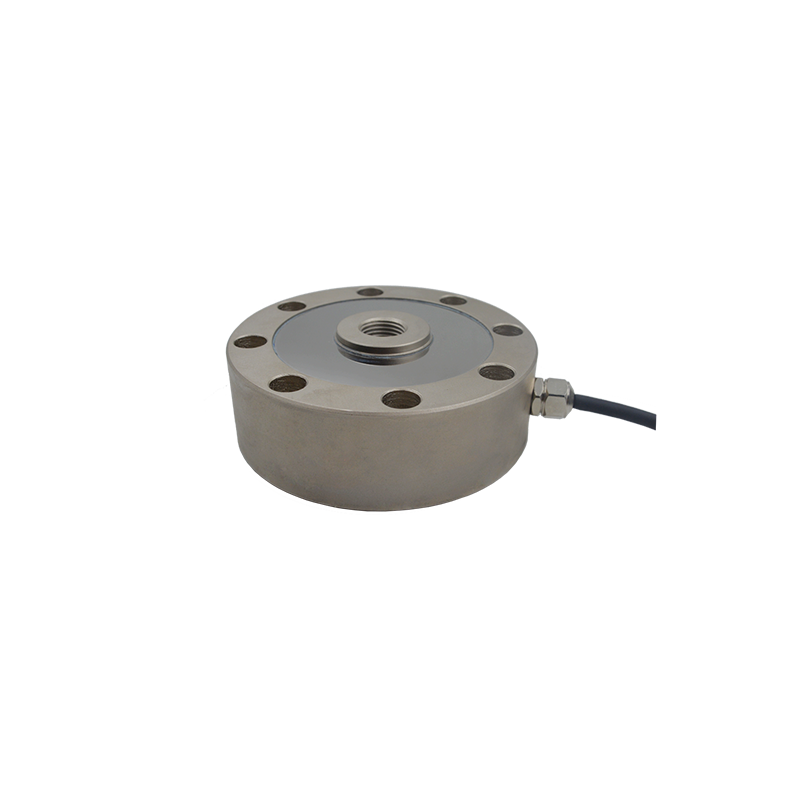

Flange Compression Force Sensor T312

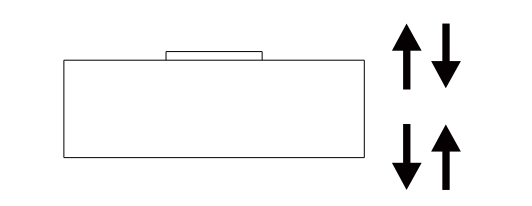

Spoke sensors (fatigue rated) are specifically designed for tension and compression applications. When you choose aluminum alloy, the range is 0.2t-10t. When you choose 17-4 stainless steel, the range is 15t-60t.
Product Description
Flange Compression Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 0.1,0.2,1,2,3,5,10,15,20,25,30,50,60t |
| Nominal(rated)sensitivity |
2.0±1%mVV(50-500kg,50-60t) 3.0±1%mVV(1~30t) |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on sensitvty | 0.002%F.S./10℃ |
| Temp.effect on zero | 0.002%F.S./10℃ |
| Nput impedance | 380/780±20Ω |
| Output impedance | 350/700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10-60℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | φ5×6000mm |
